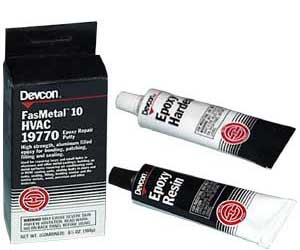

Fasmetal™ 10 HVAC Repair

Color

Aluminum

Mix Ratio by Volume

1:01

Mix Ratio by Weight

0.9:1

% Solids by Volume

100

Pot Life @ 75F

60 min.

Specific Volume

16.1 in.(3)/lb.

Cured Shrinkage

0.0008 in./in.

Specific Gravity

1.72 gm/cc

Temperature Resistance

Wet: 110°F; Dry: 250°F

Coverage/lb

30 sq.in./6.5 oz. @ 1/4"

Cured Hardness

85D

Dielectric Strength

100 volts/mil

Dielectric Constant

21.4

Adhesive Tensile Shear

2,500 psi

Compressive Strength

8,420 psi

Modulus of Elasticity

7.8 psi x 10(5) in.

Flexural Strength

6,260 psi

Coefficient of Thermal Expansion

29 [(in.) x (in). x °F)] x 10(-6)

Thermal Conductivity

1.73 [(cal x cm) /(sec x cm(2) x °C)] x 10(-3)

Cure Time

16 hrs.

Recoat Time

10-12 hrs.

Mixed Viscosity

Paste

용도

·      Bonds to aluminum and other metals, ceramics, woods, concrete or glass

·      Repairs coils in compressors

·      Hardens to a rigid bond that can be ground, drilled or tapped

·      Fills voids or porosity in aluminum castings

·      Listed under NSN stock #8030-00-348-7617
